| Brand Name : | XINDANENG |
| Model Number : | PBTS 4-120 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 80 Set / Month |
| Delivery Time : | 10 work day |

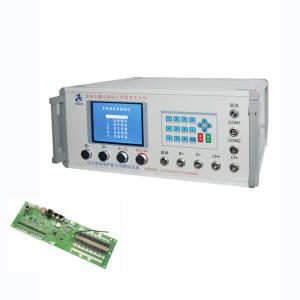

4 Series BMS Test Equipment Multi - String Protection Board Tester Scan Start
1. Test The Type Of Protective Board
1) Negative electrode plate charge and discharge in the same port / negative electrode
2) Negative electrode plate charge and discharge split port / negative electrode
3) Positive electrode plate charge and discharge in the same port / negative electrode
Note If you have the above type of protection board , you can communicate with our company
2. Special Test Items
1) Short - circuit protection test ( subtle level )
2) Single section self - consumption test ( means true and accurate self - consumption for each section )
3) Infrared scan ( barcode scan ) The ID of each protective plate and store records
3. Equipment Parameter Description
| Project Type | Test Specification | Resolution Ratio |
| Test The Number Of Strings | 1-4 Strings | |
| Reference Voltage | 0.5-5V | ±1mV |
| Overcharge To Protect Voltage | 0.5-5V | ±1mV |
| Overcharge Protection Is Lifted | 0.5-5V | ±1mV |
| Overdischarge Protection Voltage | 0.5-5V | ±1mV |
| Overrelease Protection Is Lifted | 0.5-5V | ±1mV |
| Overdischarge Current Protection Value | 1-120A | ±0.1A |
| Overcharge Flow Protection Value | 1-40A | ±0.1A |
| Overflow Protection Delay | 0-10S | ±1ms |
| Overcharge / Overcharge Protection Delay | 0-20S | ±1ms |
| Balanced Turn On Voltage | 0.5-5V | ±5mV |
| Balanced Turn On Current | 0-200mA | ±1mA |
| Single Section Self - Consumption | 0-500uA | ±1uA |
| Internal Circuit Resistance Test | 0-200mΩ | ±1mΩ |
| Short - Circuit Protection ( More Than 6 Strings ) | 0-9999uS | ±1uS |
| Online Settings | String Communication | RS232 serial port |
4. Function Introduction
| Product Model | Protective Plate Tester PBTS ( M ) 4-120 |
| Use | For 4 strings and below |
| Protection Plate Type | Lithium iron phosphate , ternary lithium cobalt oxide , lithium manganese oxide , etc |
| Module | High current module the current level is 120A , and the current accuracy is 0.1A |
| Voltage module programmable output 0.5-5V , accuracy ± 1mV |
|
|
