18650 Battery Charge And Discharge Tester Battery Cycle Test Equipment
1. Fundamental Characteristics
1) With PC software , USB hub , and router
2) The aging system uses a 32- bit ARM chip with a reaction speed block and high voltage and current measurement accuracy Pass data via PS232 , or network
3) The equipment has the constant current discharge function
2. Equipment Parameter Description
| Product model | BCDS70-05-10 | |
| Voltage | measuring range | 7 ~ 70V |
| precision | ± ( 0.2% of reading + 0.2% of range) | |
| Current | Charging range | 50~ 5000mA |
| Discharge range | 50 ~ 10000mA | |
| precision | ±(0.2% of reading + 0.2% of range ) | |
| Battery charging | Constant pressure cut - off current | Minimum 50 mA |
| Volume | precision | ±1‰ |
| Power | Discharge power | ≤ 700W |
| Time | Inspection time | Receive real - time < 2S |
| Timed range | 0~999 Hours / Step | |
| Data recording interval | ≥5S | |
| Medium machine version | 1.1 Series | |
| Battery Charging | Charging mode | Constant current constant pressure charging |
| cut - off condition | Voltage , current , relative time , overcharge protection | |
| Discharge | Discharge mode | constant - current discharge |
| cut - off condition | Voltage , relative time , and overdischarge protection | |
| Circulate | Cycle measurement range | 1 ~ 999 Times |
| Number of single cycle steps | 100 | |
| Voltage and current detection and sampling | Four - line sampling | |
| Data base | The SQL database was used to manage the test data | |

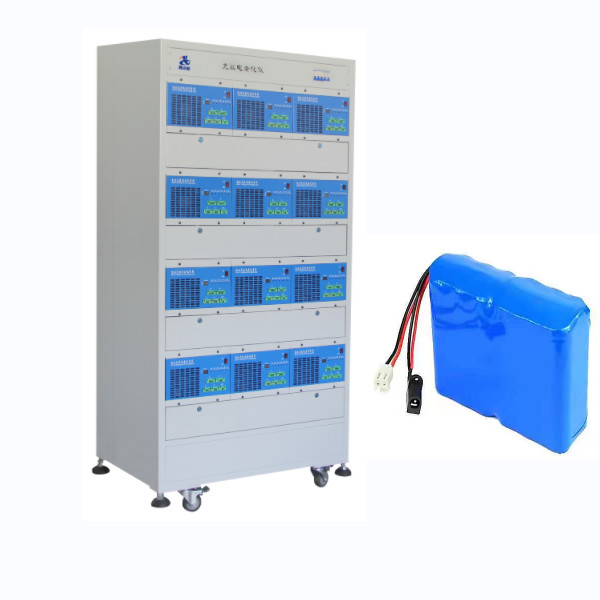

3. Product Appearance
| Single Channel Size | 300*450*170mm(W*D*H ) |
| Cabinet Size | 970*600*1700mm(W*D*H ) |
| Battery Placement Space | 900*600*130mm(W*D*H ) |
| Number Of Channels | 12 Channel , 4 rows , 3 columns |
| Equipment Accessories | Test table pen line , online tools , user manual , upper computer software |
